Home > Used Yaskawa Robot >

5 Axis Used Yaskawa Robot

Xiangjing (Shanghai) M&E Technology Co., Ltd
Contact Now

5 Axis Used Yaskawa Robot

Place of Origin : Shanghai, China

Brand Name : Yaskawa

Packaging Details : 5 axis robot arm YASKAWA MPL80 II pick and place machine 80kg Payload 2061mm Arm industrial robot
ONE YASKAWA MPL80 II industrial robot 5 Axis robot arm for pick and place machine packing with fumigation wooden frame, WG:605KG
Controller and other pa

Supply Ability : 5 Piece/Pieces per Month

Price : negotiable

MOQ : 1 set

Product name : 5 axis robot arm MPL80 II pick and place machine industrial robot

Function : Multifunctional

Controlled axes : 5

Max. Payload : 80kg

repeatability : ±0.07mm

Max. working range R : 2061mm

Temperature : 0-45 ℃

Humidity : 20%-80%

Weight : 550kg

Power supply, average : 4.0KVA

Condition : New

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : PLC, Engine, Bearing, Gearbox, Motor, Gear

Warranty : 1 Year

After-sales Service Provided : Free spare parts, Field maintenance and repair service, Video technical support, Online support

After Warranty Service : Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location : United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, India, Russia, Thailand, Japan, South Korea

Applicable Industries : Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Construction works , Energy & Mining, Advertising Company

Showroom Location : Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Indonesia, India, Mexico, Russia, Spain, South Korea, Bangladesh, Nigeria, Japan, Malaysia, Australia

Port : Shanghai

Contact Now

5 axis robot arm YASKAWA MPL80 II pick and place machine 80kg Payload 2061mm Arm industrial robot

The MOTOMAN MPL80II is a 5-axis Palletizing Robot with a payload of 80 kg and a reach of 2,061 mm. This model is derived from a 6-axis-Handling robot and tuned for High Speed and Accelerations.

Based on the reliable Sigma5 Servo Technology, this robot is easy to install and deploy.

Axes 5
Payload: 80 KG (176.37 lbs)
Reach: 2061 MM (81.14 in)
Repeatability: ±0.07mm (.002 in)
Robot Mass: 550 KG (1,212 lbs)
Structure: Articulated
Robot Motion Speed
S-Axis 170 °/s (2.96 rad/s)
L-Axis 170 °/s (2.96 rad/s)
U-Axis 170 °/s (2.96 rad/s)
B-Axis 170 °/s (2.96 rad/s)
T-Axis 350 °/s (6.10 rad/s)
Robot Motion Range
S-Axis - ±180°
L-Axis - 135°-90°
U-Axis - 35°-160°
B-Axis - ±15°
T-Axis - ±360°

Key benefits:

  • Extremely high acceleration and axis speed values;
  • Compact design allows maximum performance using minimal floor space;
  • Increased durability of hose package by internal cable wiring;
  • Optional: Palletizing robot software package.

5 Axis Used Yaskawa Robot

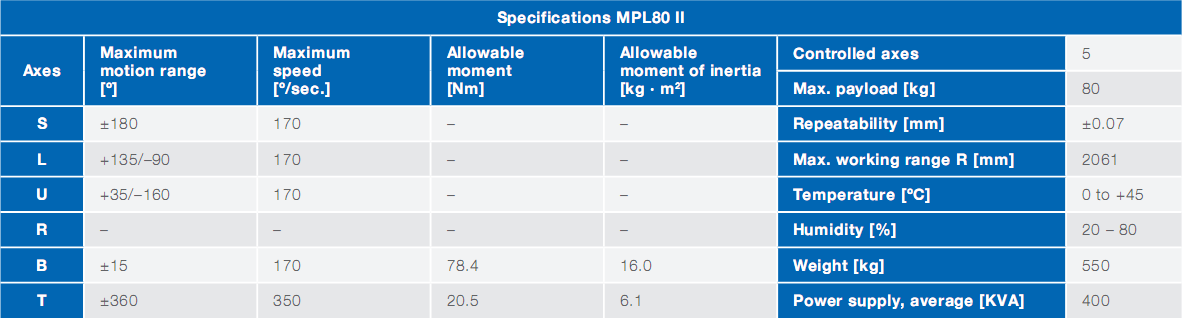

Specification

Product Name 5 axis robot arm YASKAWA MPL80 II pick and place machine 80kg Payload 2061mm Arm industrial robot
Model MPL80 II
Application Handling & General Application
Maximum reach 2061mm
Maximum payload 80kg
Pose repeatability (ISO 9283) ± 0.07mm
Number of axes 5
Mounting position Floor
Weight 550kg
Protection rating IP67
Controller DX200
Motion range
S 180° to -180°
L 135° to -90°
U 35° tp -160°
R
B 15° to -15°
T 360° to -360°

5 Axis Used Yaskawa Robot

MPL80 II Introduction:

5 Axis Used Yaskawa Robot

The versatile and powerful 5-axis MOTOMAN MPL80 II robot provides high performance in case palletising, bag palletising, order picking and many further logistical tasks for end-of-line or distribution center automation.

5 Axis Used Yaskawa Robot

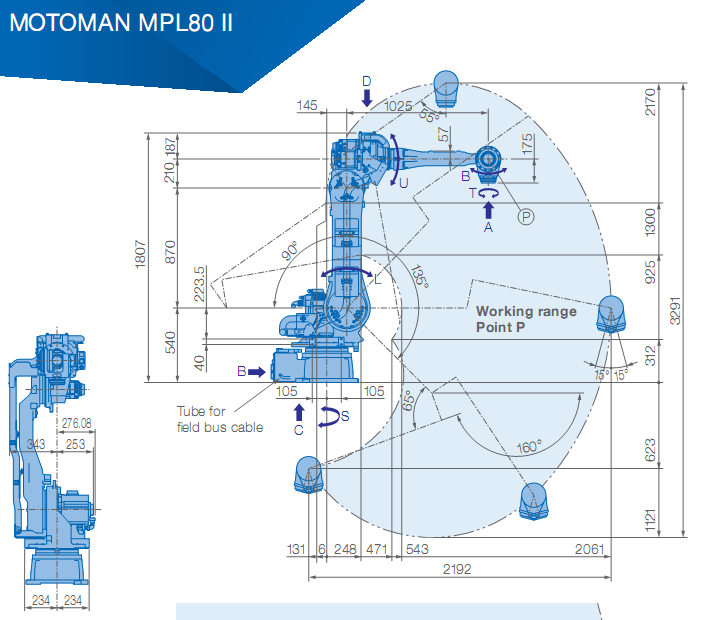

Its extensive vertical reach of 3291 mm combined with 2061 mm horizontal reach enables high palletising loads. Empty tubes for internally routed airlines and cables from base to end-of-arm tool maximize system reliability.

5 Axis Used Yaskawa Robot

The MPL80 II is driven by the high-perfomance DX200 controller which is available with the optional Category 3 Functional Safety Unit (FSU), providing a variety of new safety functions.

KEY BENEFITS
• Flexible and powerful
• High Payload: 80 kg
• Maximum reliability, empty tubes for internally routed airlines and cables
• Internally routed fieldbus connection (optional) to T-axis/tool
• Enhanced Safety Functions for DX200 Functional Safety Controller (FSU)

Applications:

Handling & General Application
