6 Axis GP7 Used Yaskawa Robot Pick And Place Machine 7kg Payload 927mm

Product Categories
Xiangjing (Shanghai) M&E Technology Co., Ltd
Contact Now

6 Axis GP7 Used Yaskawa Robot Pick And Place Machine 7kg Payload 927mm

Place of Origin : Shanghai, China

Brand Name : Yaskawa

Packaging Details : 6 axis robot arm YASKAWA GP7 pick and place machine 7kg Payload 927mm Arm industrial robot
ONE YASKAWA GP7 industrial robot 6 Axis robot arm for pick and place machine packing with fumigation wooden frame, WG:205KG
Controller and other parts packing

Supply Ability : 5 Piece/Pieces per Month

Price : negotiable

Model Number : GP7

Certification : CE

MOQ : 1 set

Product name : 6 axis robot arm YASKAWA GP7 pick and place machine industrial robot

Function : Multifunctional

Controlled axes : 6

Max. Payload : 7kg

repeatability : ±0.03mm

Max. working range R : 927mm

Temperature : 0-45 ℃

Humidity : 20%-80%

Weight : 34kg

Power supply, average : 1.0KVA

Condition : New

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : PLC, Engine, Bearing, Gearbox, Motor, Gear

Warranty : 1 Year

After-sales Service Provided : Free spare parts, Field maintenance and repair service, Video technical support, Online support

After Warranty Service : Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location : United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, India, Russia, Thailand, Japan, South Korea

Applicable Industries : Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Construction works , Energy & Mining, Advertising Company

Showroom Location : Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Indonesia, India, Mexico, Russia, Spain, South Korea, Bangladesh, Nigeria, Japan, Malaysia, Australia

Port : Shanghai

Contact Now

used 6 axis robot arm YASKAWA GP7 pick and place machine 7kg Payload 927mm Arm industrial robot

The MOTOMAN GP7 is an extremely fast and precise 6-axis industrial robot with a payload capacity of up to 7 kg. With a reach of 927 mm and a high repeatability of ± 0.01 mm, it is ideally suited to assembly tasks, but also universal handling tasks, CNC machine tool tending or packaging. Its smooth and streamlined modern industrial design is attractive and minimizes the space requirements at the installation site. Cable entry is optionally from the side at the pedestal or from underneath through the base plate, thus enabling space-saving and uncluttered integration into its environment, irrespective of the intended installation position. The prepared routing of the supply lines in the arm enables optimal integration of the grippers or sensor systems, often dispensing with the need for an external media package. A world of possibilities is open to the MOTOMAN GP7 with the numerous functions of the MOTOMAN YRC1000 controller or the compact MOTOMAN YRC1000micro controller. In conjunction with the conventional teach pendant, this robot is a reliable mechanical engineering partner. With the innovative operator control concept of the SmartPendant, it provides an excellent point of entry into the world of robotics. As standard, the MOTOMAN GP7 is designed with the high protection classification IP67. Other variants (e.g. with foodcompatible grease in the food industry, special anti-corrosion coating for applications in aggressive ambient conditions, or as a cleanroom version CR5) are optionally available.

KEY BENEFITS

• Extremely fast and powerful

• Compact and flexible

• Large working range: 927 mm

• Reduced interference contours due to optimized design

• Simple commissioning and maintenance

Main Specifications:

Model:GP7
Maximum reach:927mm
Maximum payload:7kg
Pose repeatability:± 0.03mm
Number of axes:6
Weight:34kg

More products:

KUKA robot

1: KR 6 R1820 6KG 6axis welding robot

2: KR 6 R700 sixx 6 axis payload 6kg multifunctional industrial robot

3: KR 10 R1420 6 aixs 10kg welding robot

4: KR 210 R2700 EXTRA 210KG payload multifunctional industrial robot

ABB robot

1: IRB 1200/7/0.7 6 axis 7kg payload multifunctional industrial robot

2: IRB 1520ID 6 axis 5kg payload for welding

3: IRB 6700/150/3.2 150 kg payload for handing,cutting and palletizing

Collaborative robot

1: Collaborative robot of Chinese industrial robot arm 6 axis 6kg paylad

2: Collaborative robot of chinese industrial robot arm 7 axis 5kg payload

6 Axis GP7 Used Yaskawa Robot Pick And Place Machine 7kg Payload 927mm

Specification

Product Name 6 axis robot arm YASKAWA GP7 pick and place machine 7kg Payload 927mm Arm industrial robot
Model GP7
Application Handling & General Application
Maximum reach 927mm
Maximum payload 7kg
Pose repeatability (ISO 9283) ± 0.03mm
Number of axes 6
Mounting position Floor
Weight 34kg
Protection rating IP67
Controller YRC1000 controller/ YRC1000micro Controller

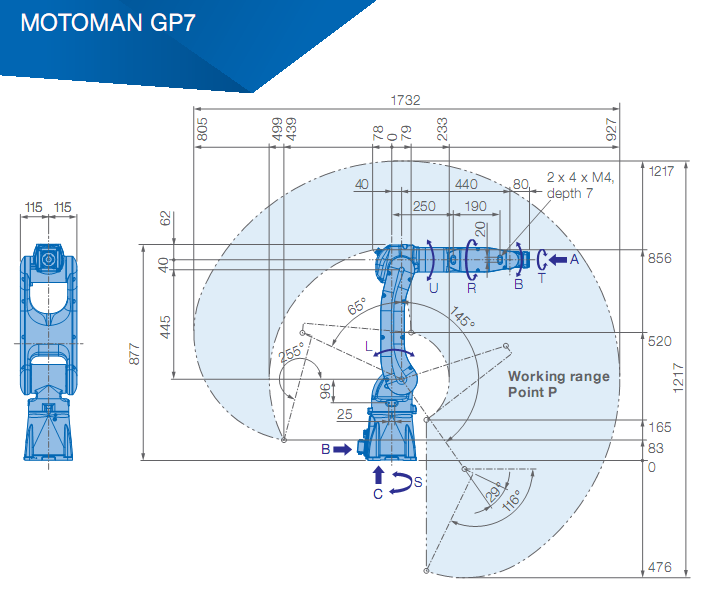

Motion range
S 170° to -170°
L 145° to -65°
U 190° tp -70°
R 190° to -190°
B 135° to -135°
T 360° to -360°

6 Axis GP7 Used Yaskawa Robot Pick And Place Machine 7kg Payload 927mm

GP7 Introduction:

6 Axis GP7 Used Yaskawa Robot Pick And Place Machine 7kg Payload 927mm

The MOTOMAN GP7 is an extremely fast and precise 6-axis industrial robot with a payload capacity of up to 7 kg. With a reach of 927 mm and a high repeatability of ± 0.03 mm, it is ideally suited to assembly tasks, but also universal handling tasks, CNC machine tool tending or packaging. Its smooth and streamlined modern industrial design is attractive and minimizes the space requirements at the installation site.

6 Axis GP7 Used Yaskawa Robot Pick And Place Machine 7kg Payload 927mm

Cable entry is optionally from the side at the pedestal or from underneath through the base plate, thus enabling space-saving and uncluttered integration into its environment, irrespective of the intended installation position. The prepared routing of the supply lines in the arm enables optimal integration of the grippers or sensor systems, often dispensing with the need for an external media package.

6 Axis GP7 Used Yaskawa Robot Pick And Place Machine 7kg Payload 927mm

A world of possibilities is open to the MOTOMAN GP7 with the numerous functions of the MOTOMAN YRC1000 controller or the compact MOTOMAN YRC1000micro controller. In conjunction with the conventional teach pendant, this robot is a reliable mechanical engineering partner. With the innovative operator control concept of the SmartPendant, it provides an excellent point of entry into the world of robotics.

6 Axis GP7 Used Yaskawa Robot Pick And Place Machine 7kg Payload 927mm

As standard, the MOTOMAN GP7 is designed with the high protection classification IP67. Other variants (e.g. with foodcompatible grease in the food industry, special anti-corrosion coating for applications in aggressive ambient conditions, or as a cleanroom version) are optionally available.

KEY BENEFITS
• Extremely fast and powerful
• Compact and flexible
• Large working range: 927 mm
• Reduced interference contours due to optimized design
• Simple commissioning and maintenance

Applications:

Handling & General Application

Company Information

6 Axis GP7 Used Yaskawa Robot Pick And Place Machine 7kg Payload 927mm

Our Services

1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
